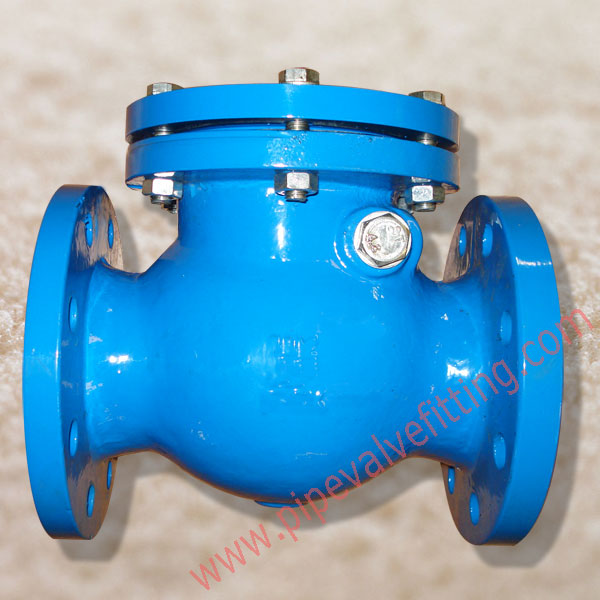

Swing type Check Valve with DIN standard.

Valve Face to Face: DIN3202 F6;

Valve Flange: DIN2532/DIN2532/DIN2533;

Valve Working Pressure: PN6/PN10/PN16;

Valve Hydraulic Testing: 100% based on DIN3230.

Valve Working Temperature: 0~18 degree.

Valve Size: DN50-DN350;

Valve Body Material: Cast Iron GG25;

Valve Disc Material: Cast Iron GG25;

Valve Bonnet Material: Cast Iron GG25;

Valve Seat Ring: Brass;

Valve Disc Ring: Brass or NBR;

Valve Gasket: Stainless Steel.

All valves can be coated by primer paint and epoxy coating.

We also supply Other valves as following:

1. Gate Valves;
2. check Valves;
3. Globle Valves;
4. Strainers;
5. Sanitary Valves;
6. Ball Valves.
